How to monitor Google Cloud service quotas

Service quotas keep you safe from overspending on resources, including hardware, software, and network attributes. Site24x7's service quota monitoring lets you know when you have either crossed or are close to crossing the allocated cloud quota for any of your cloud resources.

Prerequisites:

Note

Site24x7 uses the Cloud Quota API and the Cloud Monitoring API to read and compare the quota limits to your usage. Ensure you have provided the permissions of these two APIs to the service account used by Site24x7.

How to set up service quota monitoring

Set up a GCP Service Quota monitor by either of these two methods.

  • When you create or edit the GCP monitor (to edit your monitor, use the hamburger Hamburger icon icon next to the monitor > Edit):
    1. Navigate to the Advanced Configuration section.
    2. Under General Settings, toggle Enable Service Quotas to Yes.
    3. In the Service Quota Profile drop-down menu, select an existing service quota metric profile or create one using the add icon + next to the field.
      Note

      Enabling service quotas at the organization level enables quota monitoring for all associated projects.

  • For an existing GCP project monitor:
    1. Navigate to Site24x7 > Cloud > GCP and select the project monitor in the left navigation pane > Service Quotas.
    2. Click Enable Service Quota Monitoring.
    3. In the pop-up window, provide an appropriate name for your Service Quota Metric Profile.
    4. Select the required metrics.
    5. Review your changes and click Save.
      Note

      If you already have a Service Quota Metric Profile, it will be automatically associated with your current monitor. You can view the selected profile from the Edit GCP Monitor page.

Where can I view the service quota monitor?

To view the Service Quotas page, navigate to Site24x7 > Cloud > GCP and select the project monitor in the left navigation pane > Service Quotas.

You can view these three dashboards for a GCP service quota monitor:

  • Top 100 Quota Usages
  • Monitored Quotas
  • Outages

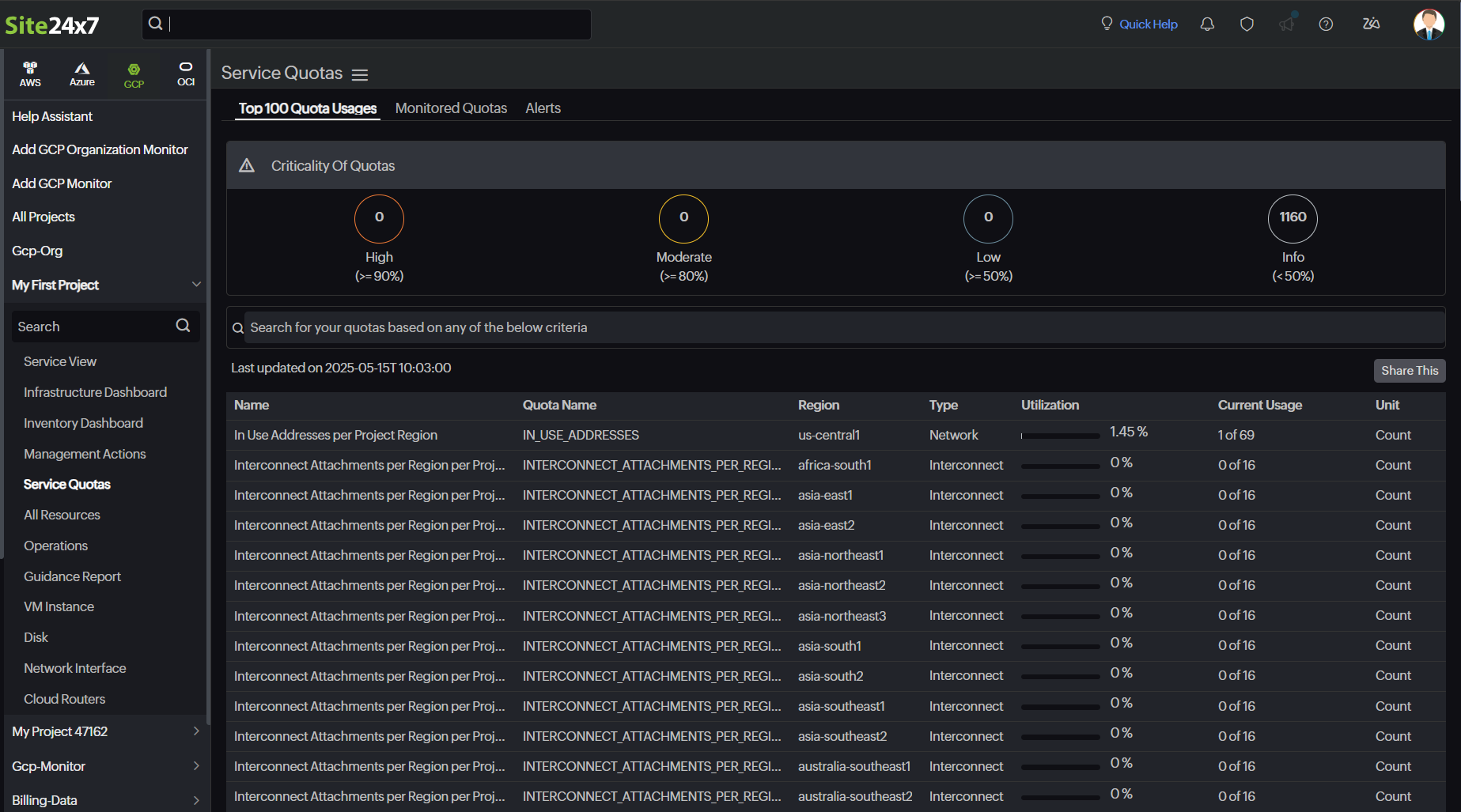

Top 100 Quota Usages

Here, you can view the top 100 service quota utilization across the supported categories.

There are two sections in this dashboard:

  • Criticality of Quotas
  • Detailed report

Criticality of Quotas

In this section, you can see the number of service quotas based on these four criticality categories:

  • High: 90% and above
  • Moderate: 80% to 89%
  • Low:50% to 79%
  • Info: Less than 50%

Detailed report

In this section, these information of each service quota will be listed:

  • Name
  • Quota Name
  • Region
  • Type
  • Utilization (%)
  • Current Usage
  • Unit

View the time of the latest data collection in the Last updated on field located below the search bar. The data shown in this dashboard is collected every three hours. Click the Share This button to export the data to CSV, PDF, and email. You can opt for getting this report periodically by clicking Schedule Report.

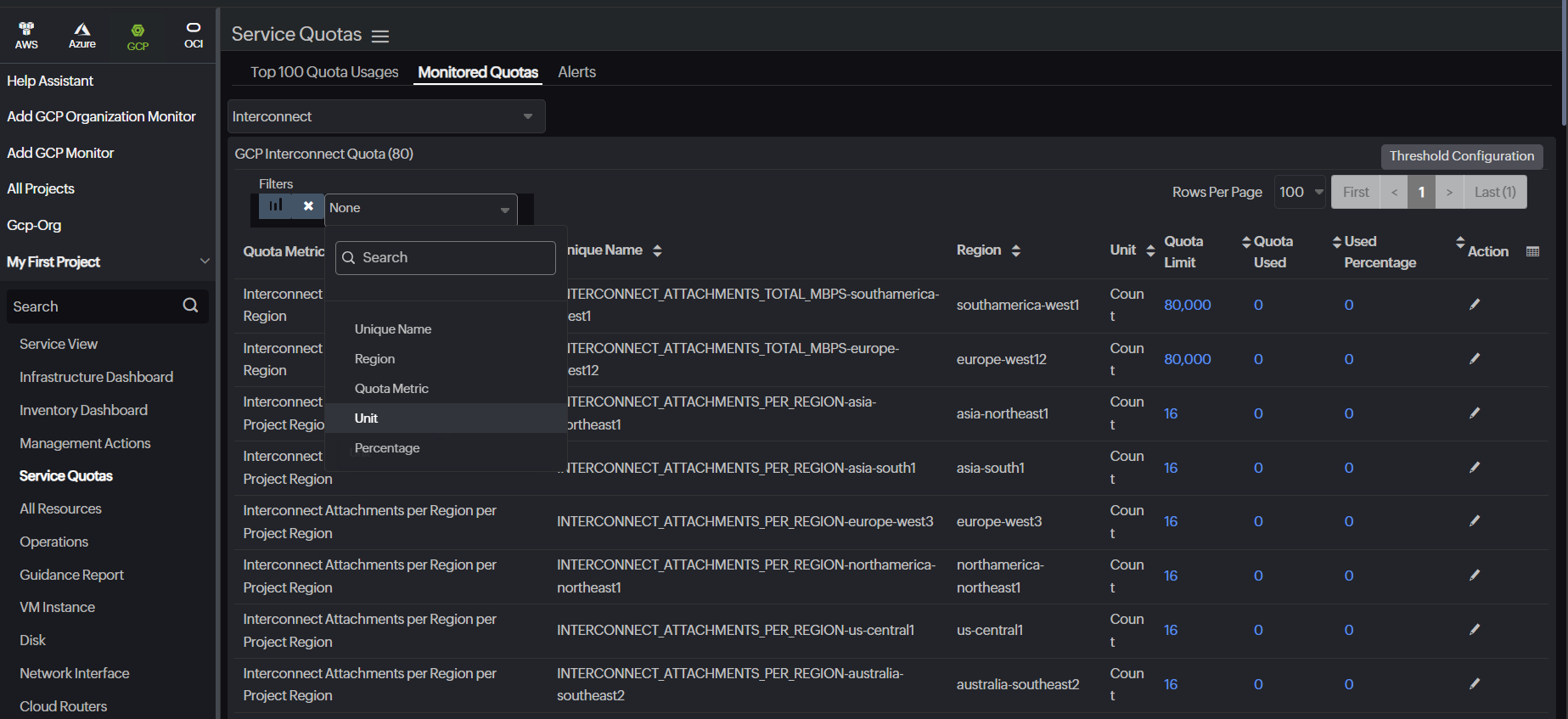

Monitored Quotas

To view the Service Quota utilization of all the monitored GCP resource quotas, navigate to the Monitored Quotas tab and select the required category in the top-left drop-down menu.

Click Threshold Configuration on the top-right corner of the table to apply threshold limits in bulk across quota metrics.

This page will list these important details about your GCP resources' service quota utilization:

  • Quota Metric
  • Unique Name
  • Region
  • Unit
  • Limit (click the metric to view a detailed dashboard)
  • Usage (click the metric to view a detailed dashboard)
  • Percent (click the metric to view a detailed dashboard)
  • Action (click the pencil icon to edit the thresholds of the respective quota metric)
Note

To view the comprehensive list of service quota metrics available for monitoring across all resource type categories, refer to this section.

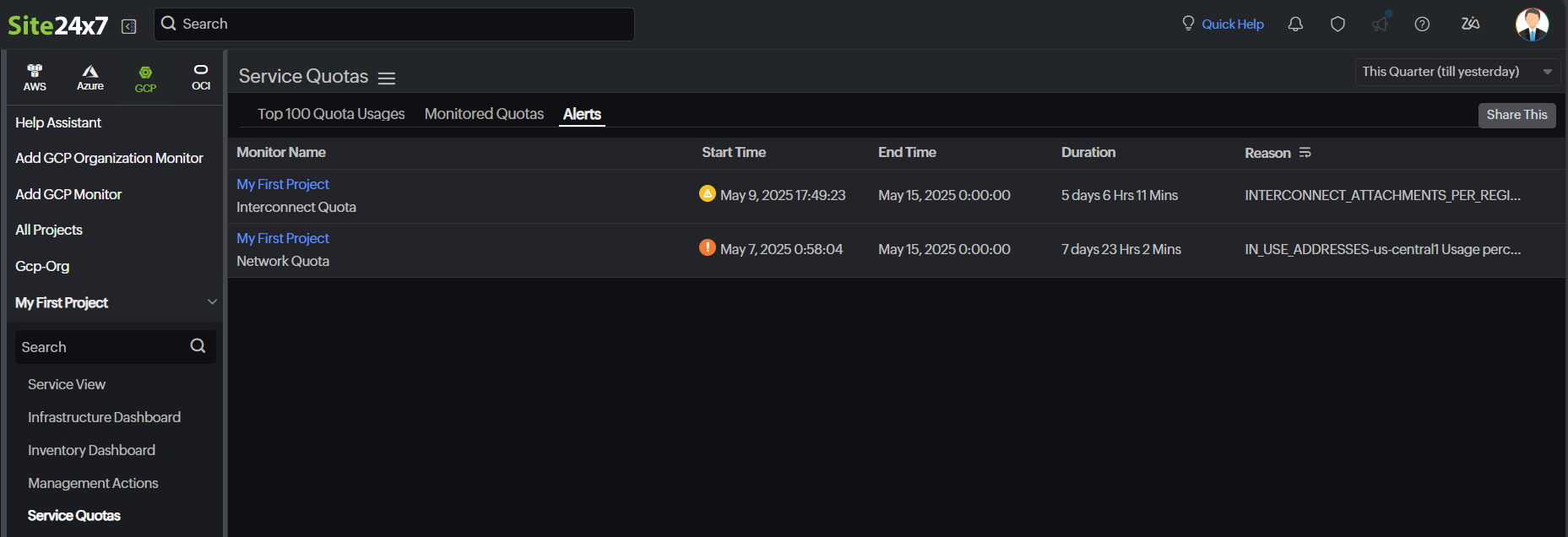

Outages

In this tab, you can view the list of all service quota threshold breaches. Click the monitor name to view the detailed view of the collected data.

You can view the monitor's name and outage details, including start time, end time, duration, and reason.

Click the Share This button to export the data to CSV, PDF, and email.

How to get alerts for a quota utilization breach

You can configure the GCP service quota monitor to trigger an alert whenever the quota utilization breaches desired limits by configuring thresholds. You can configure this via two methods:

  • Alerts when an individual quota threshold is breached:In the Monitored Quotas tab, navigate to the individual service quota, and in the Action column, click the pencil icon to configure the thresholds you wish to get alerts for.
  • To configure alerts for multiple service quota utilization at once: Navigate to the Monitored Quotas tab, select the Quota Type, and in the Quotas list page, click Threshold Configuration. In the Child Resource Names drop-down menu, select the service quotas you wish to set alerts for and then configure the thresholds.

You can configure your GCP service quota monitor to alert you when any of these three attributes breach the desired limits:

  • Limit
  • Usage
  • Usage percent

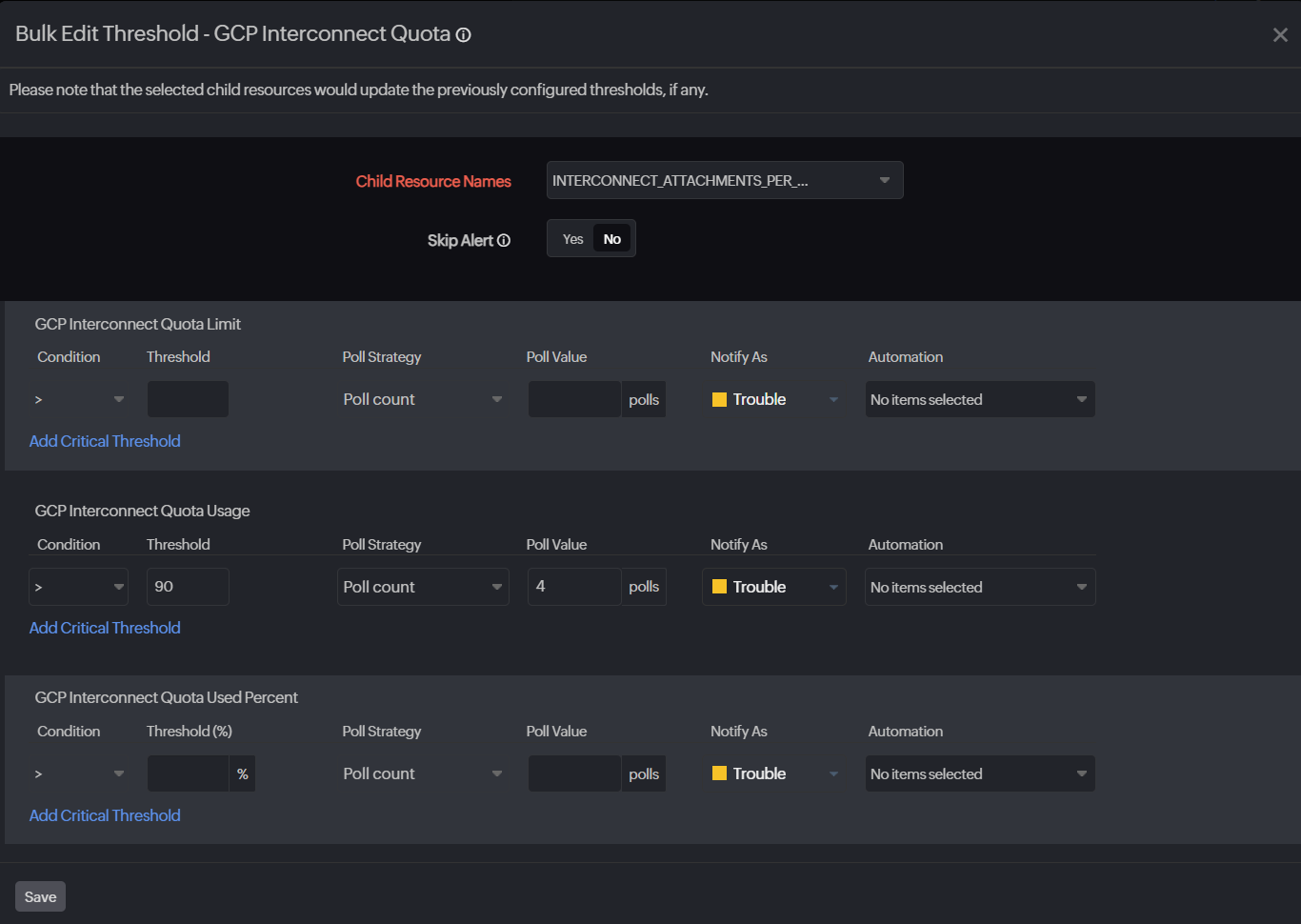

Configure the Child Threshold settings by entering the following data:

  • Condition: Set the operator for when the alert should be triggered (e.g., when the present utilization is greater than or lesser than the specified value).
  • Threshold: Enter the desired value for service quota utilization, which when breached, will trigger a trouble or critical alert.
  • Poll Strategy and Poll Value: Choose when the alert should be triggered. For example, if you select the Poll count strategy and enter "5" in the Poll Value field, the alert will be triggered if the service quota utilization breaches the desired limits for consecutive five data collections (polls).
  • Notify As: Select how you would like the alerts: Trouble or Critical.
Note

Each quota metric has a default threshold limit that triggers alerts at 80% and 90% for trouble and critical alerts, respectively. To change these thresholds for any default threshold profile, navigate to Admin > Configuration Profiles > Threshold and Availability and update the threshold profile of the required service quota.

Infrastructure Events

Any Service Quota threshold breach or instances where quota utilization reaches 100% is registered as an Infrastructure Event and can be viewed by navigating to Applogs (only if the Applogs feature is enabled) in the left navigation pane and filtering the required log pattern.

Sample queries:

  • logtype="Infrastructure Events" and ProductModule CONTAINS "GCP-QUOTA"
  • logtype="Infrastructure Events" and ProductModule CONTAINS "GCP-QUOTA" groupby source

How can I exclude a specific quota metric from monitoring?

  • Click the hamburger icon next to the Service Quota Monitor and click Edit.
  • In the Advanced Configuration section, click the pencil icon next to the selected metric profile in the Service Quota Metric Profile field.
  • Unselect the metric you want to exclude from monitoring.
  • Click Save.

The unselected metric will be excluded from monitoring within the next three hours.

Licenses

Every 10 Service Quota metrics monitored consumes one basic monitor license. View the license consumption of your GCP Service Quota monitor by navigating to Admin > Subscriptions > License Usage Summary > Child Entities tab.

FAQ

When does the data refresh (i.e., data collection frequency)?

The service quota metrics are updated every three hours.

When a new quota type is added for monitoring, when can I start seeing it in the Site24x7 dashboard?

New quota types are discovered and added for monitoring during enabling and then every 24 hours.

What are the supported quota service types?

As of now, we support these 14 service types:

  • Compute Quotas
  • Storage Quotas
  • Pub/Sub Quotas
  • Identity Quotas
  • Cloud Function Quotas
  • Monitoring Quotas
  • Interconnect Quotas
  • Cloud Run Quotas
  • Firestore Quotas
  • BigQuery Quotas
  • Network Quotas
  • VPC Access Quotas
  • Router Quotas
  • Load Balancer Quotas

Why am I not seeing infrastructure events?

Check if you have Applogs enabled in your Site24x7 account. If not, enable Applogs.

How is my total license consumption calculated?

Each service quota monitor consumes 0.1 basic monitor license. If you monitor a total of 51 service quotas, you will consume 5.1 basic monitor licenses, which will be added to your overall license consumption for your account and then rounded off.

What are the service quota metrics that can be monitored?

Supported metrics

Here are the metrics that are supported for monitoring for each resource type:

PubSub

  • Acknowledger in Minute per Project per Region
  • Administrator in Minute per Project
  • Exactly Once Ack Count
  • Exactly Once Delivered Message Count
  • Publisher in Minute per Project per Region
  • Push Subscriber in Minute per Project per Region
  • Streaming Pull Connections in Minute per Project per Region
  • Streaming Pull Subscriber in Minute per Project per Region
  • Subscriber in Minute per Project per Region

Cloud Storage

  • Anywhere Cache Max Cache Size
  • Dual Region Google Egress Bandwidth
  • Dual Region Internet Egress Bandwidth
  • Google Egress Bandwidth
  • Internet Egress Bandwidth
  • Multi Region Google Egress Bandwidth
  • Multi Region Internet Egress Bandwidth
  • Committed Local SSD Total GB per Project Region
  • Disks Total GB per Project Region
  • HDB Total GB per Project Region
  • HDML Total GB per Project Region
  • Local SSD Total GB per VM Family per Project Region
  • Local SSD Total GB per Project Region
  • Pre-emptible Local SSD GB per Project Region
  • SSD Total GB per Project Region
  • HDB Storage Pool Total Advanced Capacity per Project Region
  • HDB Storage Pool Total Advanced IOPS per Project Region
  • HDB Storage Pool Total Advanced Throughput per Project Region
  • HDT Storage Pool Total Advanced Capacity per Project Region
  • HDT Storage Pool Total Advanced Throughput per Project Region

Identity

  • Read Requests in Minute per Project
  • Service Accounts per Project
  • Sign Requests in Minute per Project
  • Work Load Identity Pools Creates in Minute per Client
  • Work Load Identity Pools Creates in Minute per Project
  • Work Load Identity Pools Reads in Minute per Client
  • Work Load Identity Pools Reads in Minute per Project
  • Work Load Identity Pools Writes in Minute per Client
  • Work Load Identity Pools Writes in Minute per Project
  • Write Requests in Minute per Project

Cloud Functions

  • Functions Build Time in Seconds per Day per Project
  • Total CPU Allocation in milli VCP per Project per Region
  • Total Memory Allocation in Bytes per Project per Region
  • Read Requests in Minute per Project
  • Test Function in Minute per Project
  • V2 Read Requests in Minute per Project per Region
  • V2 Write Requests in Minute per Project per Region
  • Write Requests in Minute per Project

Monitoring

  • Dashboards Read Requests per Minute per Project
  • Dashboards Write Requests per Minute per Project
  • Dashboards per Project
  • Total Requests per Minute per User
  • Time Series Ingestion Requests per Minute per Project
  • Metrics Scopes Read Requests per Minute per Project
  • Metrics Scopes Write Requests per Minute per Project
  • Monitored Projects per Metrics Scope
  • Alerting Policies per Project
  • Time Series Queries per Minute per Project
  • Service Time Series Ingestion Requests per Minute per Project
  • Services per Project
  • SLOs per Project
  • Uptime Checks per Project
  • Widgets per Dashboards

Interconnect

  • Interconnect Attachments All Regions per Interconnect Resource
  • Interconnect Attachments per Region per Project Region
  • Interconnect Attachments Total MB/s per Project Region
  • Interconnects per Project

Cloud Run

  • Active Revisions per Project
  • Total CPU Allocation (in milli vCPU) per Project per Region
  • Job Run Requests per Minute per Project Region
  • Jobs per Project
  • Instance Limit per Project Region
  • Instance Limit With Direct VPC Egress per Project Region
  • Total Memory Allocation (in Bytes) per Project per Region
  • Total Nvidia L4 Gpu Allocation per Project per Region
  • Read Requests per Minute per Project Region
  • Running Executions per Project
  • Services per Project
  • Tags per project
  • Write Requests per Minute per Project Region

Firestore

  • Composite Indexes per Database
  • Database Operations per Minute
  • Databases per Project
  • Free Daily Delete Operations per Project ('(default)' Database)
  • Export Requests per Minute
  • Import Requests per Minute
  • Locations Requests per Minute
  • Query Insights Requests per Minute
  • Free Daily Read Operations per Project ('(default)' Database)
  • Free Daily Small Operations per Project ('(default)' Database)
  • Free Daily Write Operations per Project ('(default)' Database)

Cloud Compute

  • A2 CPUs per Project Region
  • Active Resize Requests per Project Region
  • Affinity Groups per Project Region
  • Autoscalers per Project Region
  • Regional Autoscalers per Project Region
  • C2 CPUs per Project Region
  • C2d CPUs per Project Region
  • C3 CPUs per Project Region
  • Committed A2 CPUs per Project Region
  • Committed C2 CPUs per Project Region
  • Committed C2D CPUs per Project Region
  • Committed C3 CPUs per Project Region
  • Committed CPUs per Project Region
  • Committed M3 CPUs per Project Region
  • Committed Memory Optimized CPUs per Project Region
  • Committed N2 CPUs per Project Region
  • Committed N2D CPUs per Project Region
  • Committed N4 CPUs per Project Region
  • Committed T2D CPUs per Project Region
  • Committed Z3 CPUs per Project Region
  • CPUs All Regions per Project
  • CPUs per VM Family per Project Region
  • CPUs per Project Region
  • M1 CPUs per Project Region
  • M2 CPUs per Project Region
  • M3 CPUs per Project Region
  • N2 CPUs per Project Region
  • N2d CPUs per Project Region
  • Pre-emptible CPUs per Project Region
  • T2a CPUs per Project Region
  • T2d CPUs per Project Region
  • Get Serial Port Output Requests per Day per Project
  • Get Serial Port Output Requests per minute per Project
  • Get Serial Port Output Requests per minute per Project per Region
  • Pre-emptible TPU Lite Podslice V5 per Project Region
  • Pre-emptible TPU Podslice V4 per Project Region
  • Pre-emptible TPU V5p per Project Region
  • TPU Lite Podslice V5 per Project Region
  • TPU Podslice V4 per Project Region
  • TPU V5p per Project Region
  • Committed Nvidia A100 80GB GPUs per Project Region
  • Committed Nvidia A100 GPUs per Project Region
  • Committed Nvidia H100 GPUs per Project Region
  • Committed Nvidia H100 Mega GPUs per Project Region
  • Committed Nvidia K80 GPUs per Project Region
  • Committed Nvidia L4 Gpus per Project Region
  • Committed Nvidia P100 GPUs per Project Region
  • Committed Nvidia P4 GPUs per Project Region
  • Committed Nvidia T4 GPUs per Project Region
  • Committed Nvidia V100 GPUs per Project Region
  • GPUs All Regions per Project
  • GPUs per GPU Family per Project Region
  • Nvidia A100 80gb GPUs per Project Region
  • Nvidia A100 GPUs per Project Region
  • Nvidia K80 GPUs per Project Region
  • Nvidia L4 GPUs per Project Region
  • Nvidia L4 Vws GPUs per Project Region
  • Nvidia P100 GPUs per Project Region
  • Nvidia P100 Vws GPUs per Project Region
  • Nvidia P4 GPUs per Project Region
  • Nvidia P4 Vws GPUs per Project Region
  • Nvidia T4 GPUs per Project Region
  • Nvidia T4 Vws GPUs per Project Region
  • Nvidia V100 GPUs per Project Region
  • Pre-emptible Nvidia A100 80GB GPUs per Project Region
  • Pre-emptible Nvidia A100 GPUs per Project Region
  • Pre-emptible Nvidia H100 GPUs per Project Region
  • Pre-emptible Nvidia H100 Mega GPUs per Project Region
  • Pre-emptible Nvidia K80 GPUs per Project Region
  • Pre-emptible Nvidia L4 GPUs per Project Region
  • Pre-emptible Nvidia L4 Vws GPUs per Project Region
  • Pre-emptible Nvidia P100 GPUs per Project Region
  • Pre-emptible Nvidia P100 Vws GPUs per Project Region
  • Pre-emptible Nvidia P4 GPUs per Project Region
  • Pre-emptible Nvidia P4 Vws GPUs per Project Region
  • Pre-emptible Nvidia T4 GPUs per Project Region
  • Pre-emptible Nvidia T4 Vws GPUs per Project Region
  • Pre-emptible Nvidia V100 GPUs per Project Region
  • Reservations per Project Region
  • Commitments per Project Region
  • Committed Licenses per Project Region
  • Instance Group Managers per Project Region
  • Instance Groups per Project Region
  • Instance Templates per Project
  • Instance Templates per Project Region
  • Instances per VPC Network
  • Instances per Peering Group
  • Instances per Project Region
  • Instance List Referrers Requests per minute per Project
  • Instance List Referrers Requests per minute per Project per Region
  • common.inst.metadata.requests=
  • Regional Instance Group Managers per Project Region
  • Hdb Total Throughput per Project Zone
  • HDML Total Throughput per Project Region
  • Pd Extreme Total Provisioned IOPS per Project Region
  • Hdb Total IOPS per Project Zone
  • License Insert Requests per day per Project
  • License Insert Requests per minute per Project
  • License Verification Requests per Day per Project
  • License Verification Requests per Minute per Project
  • License Verification Requests per Minute per Project per Region
  • In Use Backup Schedules per Project Region
  • In Use Snapshot Schedules per Project Region
  • Snapshots per Project
  • Images per Project
  • Machine Images per Project
  • Node Groups per Project Region
  • Node Templates per Project Region
  • Get mac sec Config Requests per minute per Project
  • Global Concurrent Operations per Project
  • Global Concurrent Operations per Project Operation Type
  • Global Resource Write Requests per Minute per Project
  • Global Resource Write Requests per Minute per Project per Region
  • Heavy Weight Read Requests per minute per Project
  • Heavy Weight Read Requests per minute per Project per Region
  • Heavy Weight Write Requests per minute per Project
  • Heavy Weight Write Requests per minute per Project per Region
  • List Requests Filter Cost Overhead per Minute per Project
  • List Requests Filter Cost Overhead per Minute per Project per Region
  • List Requests per Minute per Project
  • List Requests per Minute per Project per Region
  • Operation Read Requests per Minute per Project
  • Operation Read Requests per Minute per Project per Region
  • Resource Policies per Project Region
  • Read Requests per Minute per Project
  • Read Requests per Minute per Project per Region
  • Concurrent Regional Operations per Project
  • Concurrent Regional Operations per Project per Operation Type
  • Simulate Maintenance Event Requests per Day per Project
  • Simulate Maintenance Event Requests per Minute per Project
  • Simulate Maintenance Event Requests per Minute per Project per Region
  • URL Maps per Project
  • XPN Service Projects per Project
  • Default Queries per Day per Project
  • Default Queries per Minute per Project
  • Default Queries per Minute per Project per Region

BigQuery

  • Alloy DB Federated Query Cross Region Bytes per Day
  • Cloud Sql Federated Query Cross Region Bytes per Day
  • Cross Cloud Transferred Bytes per Day
  • Extract Bytes per Day
  • IAM Policy Requests per Minute per Project
  • IAM Policy Requests per Minute per User
  • Tabledata List Bytes per Minute in Eu (default Quota)
  • Tabledata List Bytes per Minute per Region (default Quota)
  • Tabledata List Bytes per Minute in Us (default Quota)
  • Omni Materialized Query Bytes per Day
  • Query Usage per Day
  • Query Usage per User per Day
  • Set IAM Policy Requests per Minute per Project
  • Set IAM Policy Requests In Aws-ap-northeast-2 per Minute per Project
  • Set IAM Policy Requests In Aws-ap-southeast-2 per Minute per Project
  • Set IAM Policy Requests In Aws-eu-central-1 per Minute per Project
  • Set IAM Policy Requests In Aws-eu-west-1 per Minute per Project
  • Set IAM Policy Requests In Aws-us-east-1 per Minute per Project
  • Set IAM Policy Requests In Aws-us-west-2 per Minute per Project
  • Set IAM Policy Requests In Azure-eastus2 per Minute per Project
  • Set IAM Policy Requests In Azure-westus2 per Minute per Project
  • Global Set IAM Policy Requests per Minute per Project Global
  • Streaming Insert Bytes per Minute per Region (default Quota)
  • Streaming Insert Bytes per Minute In Eu (default Quota)
  • Streaming Insert Bytes per Minute In Us (default Quota)
  • Unlimited Requests per Day per Project

Cloud Network

  • Authz Extensions per Region
  • Edge Cache Key Sets
  • Edge Cache Origins
  • Edge Cache Services
  • Endpoint Policies
  • External Managed Project LB Observability Extensions per Region
  • Gateways
  • Global Authz Extensions
  • Global External Managed Project LB Observability Extensions
  • Global Internal Managed Project LB Observability Extensions
  • Global LB Observability Extensions
  • Global LB Route Extensions
  • Global LB Traffic Extensions
  • Global Project LB Observability Extensions per Load Balancing Scheme
  • GRPC HTTP Filters
  • HTTP Routes
  • Internal Managed Project LB Observability Extensions per Region
  • LB Observability Extensions per Region
  • LB Route Extensions per Region
  • LB Traffic Extensions per Region
  • Meshes
  • Message Publishing Routes
  • Message Subscriptions
  • Observability Policies
  • Plugins Via WASM Actions
  • Plugins Via WASM Actions per Day
  • Project LB Observability Extensions per Region per Load Balancing Scheme
  • Regional Endpoint Policies
  • Regional Gateways
  • Regional GRPC Routes
  • Regional HTTP Filters
  • Regional HTTP Routes
  • Regional Meshes
  • Regional Message Publishing Routes
  • Regional Message Subscriptions
  • Regional Service Bindings
  • Regional TCP Filters
  • Regional TCP Routes
  • Regional TLS Routes
  • Regional Traffic Policies
  • Requests per Minute
  • RO Requests per Minute
  • RW Requests per Minute
  • Service Bindings
  • Service LB Policies
  • TCP Filters
  • TCP Routes
  • TLS Routes
  • Traffic Policies
  • WASM Actions
  • WASM Plugin Versions
  • WASM Plugins
  • SSL Certificates per Project
  • SSL Policies per Project
  • SSL Policies per Project Region
  • Address Move per Minute per Project
  • Address Move Requests per Min per Project per Region
  • Global Internal Addresses per Project
  • In Use Addresses per Project
  • In Use Addresses per Project Region
  • Internal Addresses per Project Region
  • Static Addresses per Project
  • Static Addresses per Project Region
  • Static BYOIP Addresses per Project
  • Static BYOIP Addresses per Project Region
  • Static External IPv6 Address Ranges per Project Region
  • Static Internal IPv6 Address Ranges per Project Region
  • Variable IPv6 Public Delegated Prefixes per Project Region
  • Subnet Ranges per VPC Network
  • Subnet Ranges per Peering Group
  • Subnetworks per Project
  • Rule Attributes per Global Network Firewall Policy
  • Rule Attributes per Regional Network Firewall Policy
  • Network Firewall Policies per Project
  • Network Firewall Policies per Project Region
  • Firewalls per Project
  • FQDNs per Global Network Firewall Policy
  • FQDNs per Regional Network Firewall Policy
  • IP Aliases per VPC Network
  • IP Aliases per Peering Group
  • Network Attachments per Project Region
  • Network Endpoint Groups per Project
  • Network Endpoint Groups per Project Region
  • Networks per Project
  • Network Endpoint List Requests per Minute per Project
  • Network Endpoint List Requests per Minute per Project per Region
  • Network Endpoint Write Requests per Minute per Project
  • Network Endpoint Write Requests per Minute per Project per Region
  • Peerings per VPC Network
  • PSC Propagated Connections per VPC Network
  • Regional Network Endpoint List Requests per Minute per Project per Region
  • Regional Network Endpoint Write Requests per Minute per Project per Region
  • Static Routes per VPC Network
  • Static Routes per Peering Group
  • Security Policies per Project
  • Security Policies per Project Region
  • Security Policy Advanced Rules per Edge Security Policy
  • Security Policy Advanced Rules per Project Region
  • Security Policy Advanced Rules per Regional Security Policy
  • Security Policy Advanced Rules per Security Policy
  • Security Policy Ceval Rules per Project
  • Security Policy Rules per Project
  • Security Policy Rules per Project Region
  • Dynamic Routes per Region per Peering Group
  • Inter Region Egress Bandwidth per Project
  • Packet Mirrorings per Project
  • Public Advertised Prefixes per Project
  • Public Delegated Prefixes per Project
  • Public Delegated Prefixes per Project Region
  • Public Advertised Prefix V2 Announce Requests per Day per Project
  • Public Advertised Prefix V2 Announce Requests per Minute per Project
  • Public Advertised Prefix V2 Create Requests per Day per Project
  • Public Advertised Prefix V2 Create Requests per Minute per Project
  • Public Advertised Prefix V2 Delete Requests per Day per Project
  • Public Advertised Prefix V2 Delete Requests per Minute per Project
  • Public Delegated Prefix Announce Requests per Minute per Project per Region
  • Public Delegated Prefix Create Requests per Minute per Project per Region
  • Public Delegated Prefix Delete Requests per Minute per Project per Region
  • Public Delegated Prefix V2 Announce Requests per Day per Project
  • Public Delegated Prefix V2 Announce Requests per Minute per Project
  • Public Delegated Prefix V2 Create Requests per Day per Project
  • Public Delegated Prefix V2 Create Requests per Minute per Project
  • Public Delegated Prefix V2 Delete Requests per Day per Project
  • Public Delegated Prefix V2 Delete Requests per Minute per Project
  • Routes per Project
  • Service Attachments per Project Region
  • VM To Internet Egress Bandwidth per Project Region
  • Authz Extensions per Region
  • Edge Cache Key Sets
  • Edge Cache Origins
  • Edge Cache Services
  • Endpoint Policies
  • External Managed Project LB Observability Extensions per Region
  • Gateways
  • Global Authz Extensions
  • Global External Managed Project LB Observability Extensions
  • Global Internal Managed Project LB Observability Extensions
  • Global LB Observability Extensions
  • Global LB Route Extensions
  • Global LB Traffic Extensions
  • Global Project LB Observability Extensions per Load Balancing Scheme
  • GRPC Routes
  • HTTP Filters
  • HTTP Routes
  • Internal Managed Project LB Observability Extensions per Region
  • LB Observability Extensions per Region
  • LB Route Extensions per Region
  • LB Traffic Extensions per Region
  • Meshes
  • Message Publishing Routes
  • Message Subscriptions
  • Observability Policies
  • Plugins Via WASM Actions
  • Plugins Via WASM Actions per Day
  • Project LB Observability Extensions per Region per Load Balancing Scheme
  • Regional Endpoint Policies
  • Regional Gateways
  • Regional GRPC Routes
  • Regional HTTP Filters
  • Regional HTTP Routes
  • Regional Meshes
  • Regional Message Publishing Routes
  • Regional Message Subscriptions
  • Regional Service Bindings
  • Regional TCP Filters
  • Regional TCP Routes
  • Regional TLS Routes
  • Regional Traffic Policies
  • Requests per Minute
  • RO Requests per Minute
  • RW Requests per Minute
  • Service Bindings
  • Service LB Policies
  • TCP Filters
  • TCP Routes
  • TLS Routes
  • Traffic Policies
  • WASM Actions
  • WASM Plugin Versions
  • WASM Plugins

Cloud VPC Access

  • Read Requests per Minute per Project
  • Write Requests per Minute per Project

Cloud Router

  • Cloud Router Prefixes from other Regions per Region per VPC
  • Cloud Router Prefixes from Own Region per Region per VPC
  • Routers per Project
  • External VPN Gateways per Project
  • Target VPN Gateways per Project
  • VPN Gateways per Project
  • VPN Tunnels per Project

Load Balancer

  • External Network LB Forwarding Rules per Project Region
  • Global External Proxy LB Backend Services per Project
  • Internal LB Forwarding Rules per VPC Network
  • Internal LB Forwarding Rules per Peering Group
  • Net LB Security Policies per Project Region
  • Net LB Security Policy Rule Attributes per Project Region
  • Net LB Security Policy Rules per Project Region
  • PSC LLB Consumer Forwarding Rules per Producer VPC Network
  • PSC Internal Lb Forwarding Rules per Project Region
  • Regional External Network Lb Backend Services per Project Region
  • Regional Internal Lb Backend Services per Project Region
  • Target HTTP Proxies per Project
  • Target HTTPS Proxies per Project
  • Target Instances per Project
  • Target Pools per Project
  • Target SSL Proxies per Project
  • Target TCP Proxies per Project
  • Target TCP Proxies per Project Region
  • External Managed Forwarding Rules per Project Region
  • External Protocol Forwarding Rules per Project Region
  • Forwarding Rules per Project
  • Global External Managed Forwarding Rules per Project
  • Global Internal Managed Forwarding Rules per Region per VPC
  • Internal Managed Forwarding Rules per VPC Network
  • Internal Managed Forwarding Rules per Peering Group
  • Internal Protocol Forwarding Rules per VPC Network
  • Internal Protocol Forwarding Rules per Peering Group
  • Internal Traffic Director Forwarding Rules per Project
  • PSC Google APIs Forwarding Rules per VPC Network
  • Regional External Managed Forwarding Rules per Region per VPC
  • Regional Internal Managed Forwarding Rules per Region per VPC
  • Backend Buckets per Project
  • Backend Services per Project
  • Global External Managed Backend Services per Project
  • Global Internal Managed Backend Buckets per Project
  • Global Internal Managed Backend Services per Project
  • Global Internal Traffic Director Backend Services per Project
  • Regional External Managed Backend Services per Project Region
  • Regional Internal Managed Backend Services per Project Region
  • Regional Internal Traffic Director Backend Services per Project
  • Health Checks per Project

Was this document helpful?

Would you like to help us improve our documents? Tell us what you think we could do better.


We're sorry to hear that you're not satisfied with the document. We'd love to learn what we could do to improve the experience.


Thanks for taking the time to share your feedback. We'll use your feedback to improve our online help resources.

Shortlink has been copied!
